9.2.1 Switch and fuse descriptions

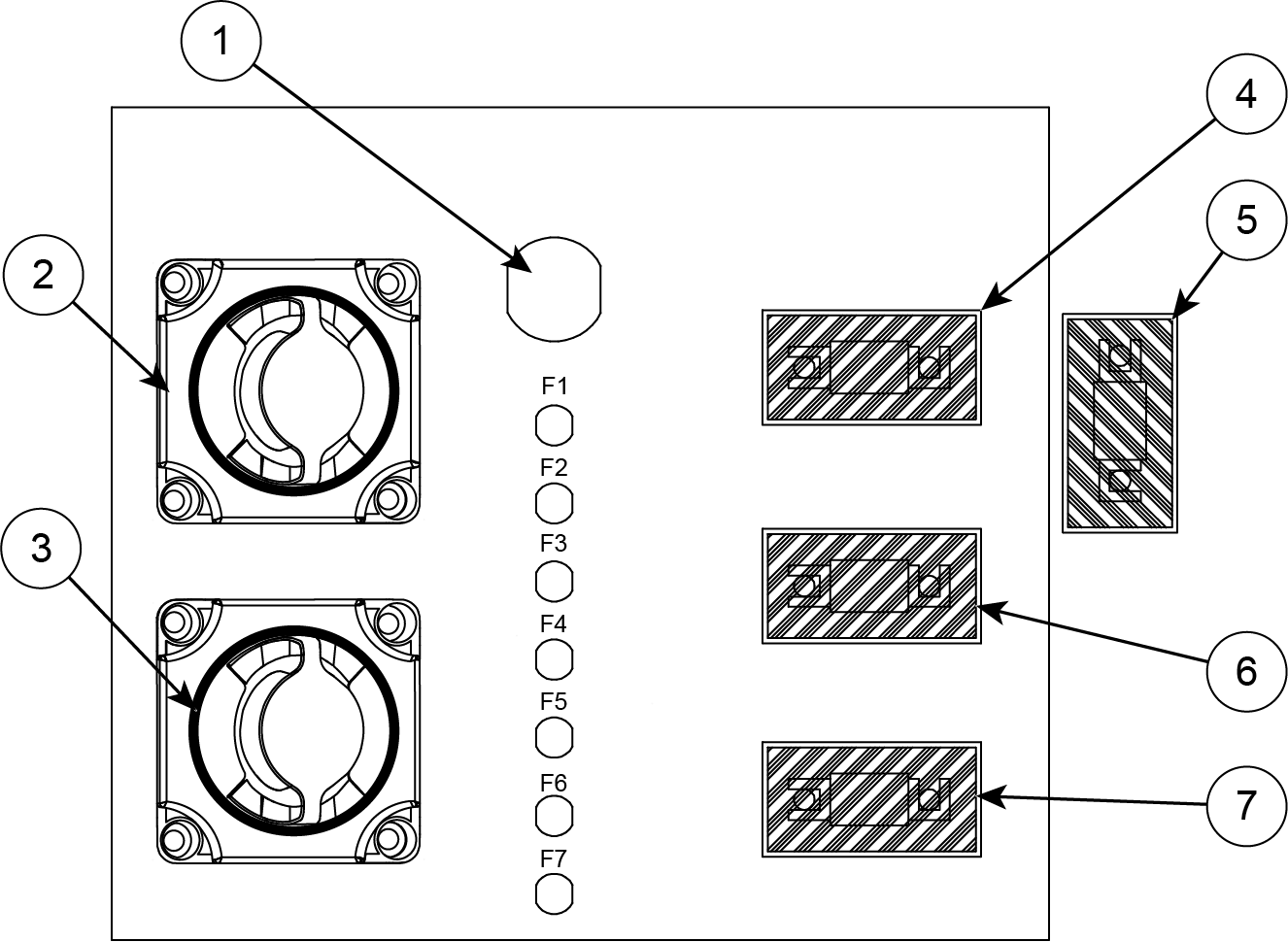

Figure 1. Cross 75 BR
main switch and fuse panel
| 1 |
12 volt outlet |
F1 |
Trim tabs |
20 A |
|
| 2 |
Main switch service |
F2 |
Heater |
15 A |
|
| 3 |
Main switch engine |
F3 |
NMEA 2000 |
3 A |
|
| 4 |
Digital switch |
80 A |
F4 |
Bilge pump |
10 A |
| 5 |
Main fuse |
250 A |
F5 |
Power steering |
50 A |
| 6 |
Bow thruster |
150 A |
F6 |
Audio |
50 A |
| 7 |
Anchor winch |
80 A |
F7 |
Extra (empty) |
