10.2 Locations of draining equipment

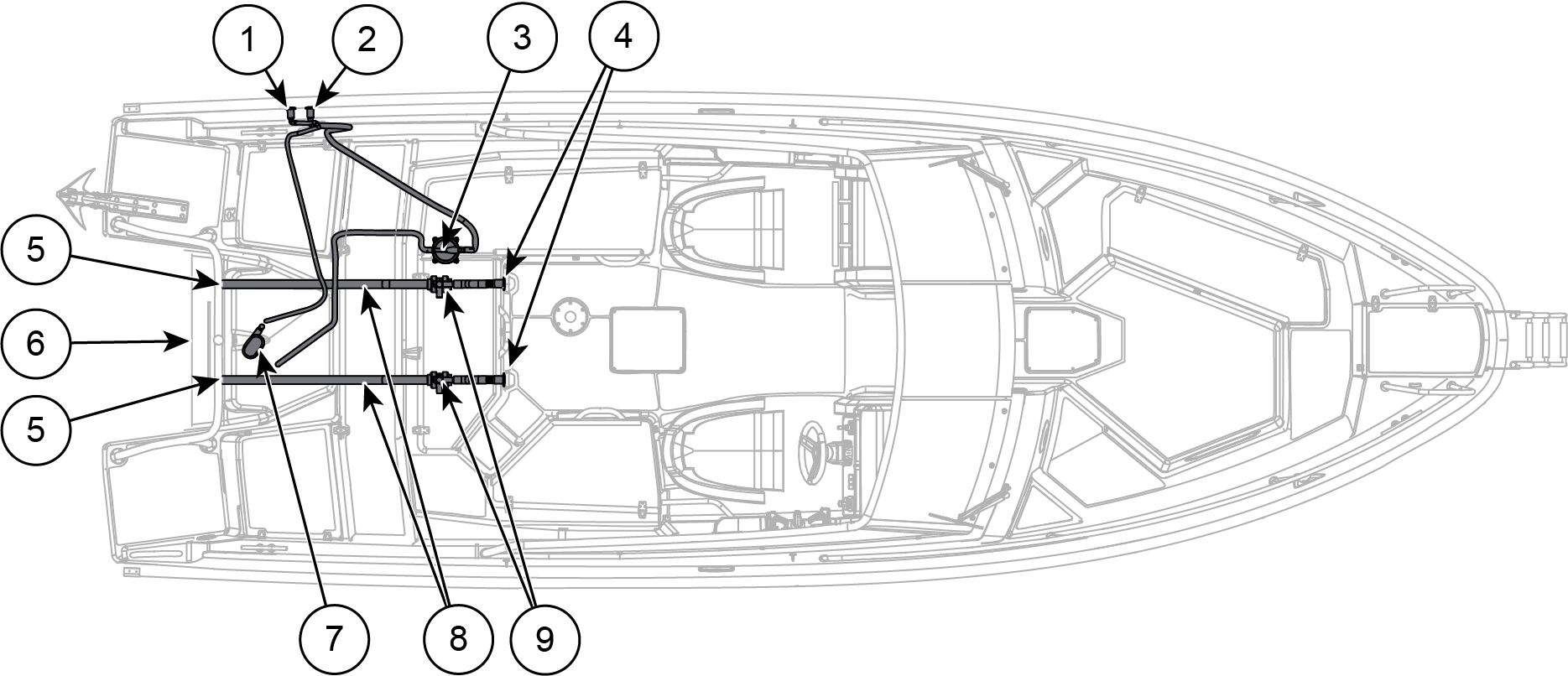

Figure 1. Cross 75 BR bilge
pumps and draining
1 | Electric bilge pump through fitting | 6 | Drain plug |
2 | Manual bilge pump through fitting | 7 | Electric bilge pump and float switch |
3 | Manual bilge pump | 8 | Open deck space drainage pipe |
4 | Rainwater drainage through fitting | 9 | Rainwater drainage shut-off valve |
5 | Shut-off flap |
