9.5.1 Locations of electrical equipment

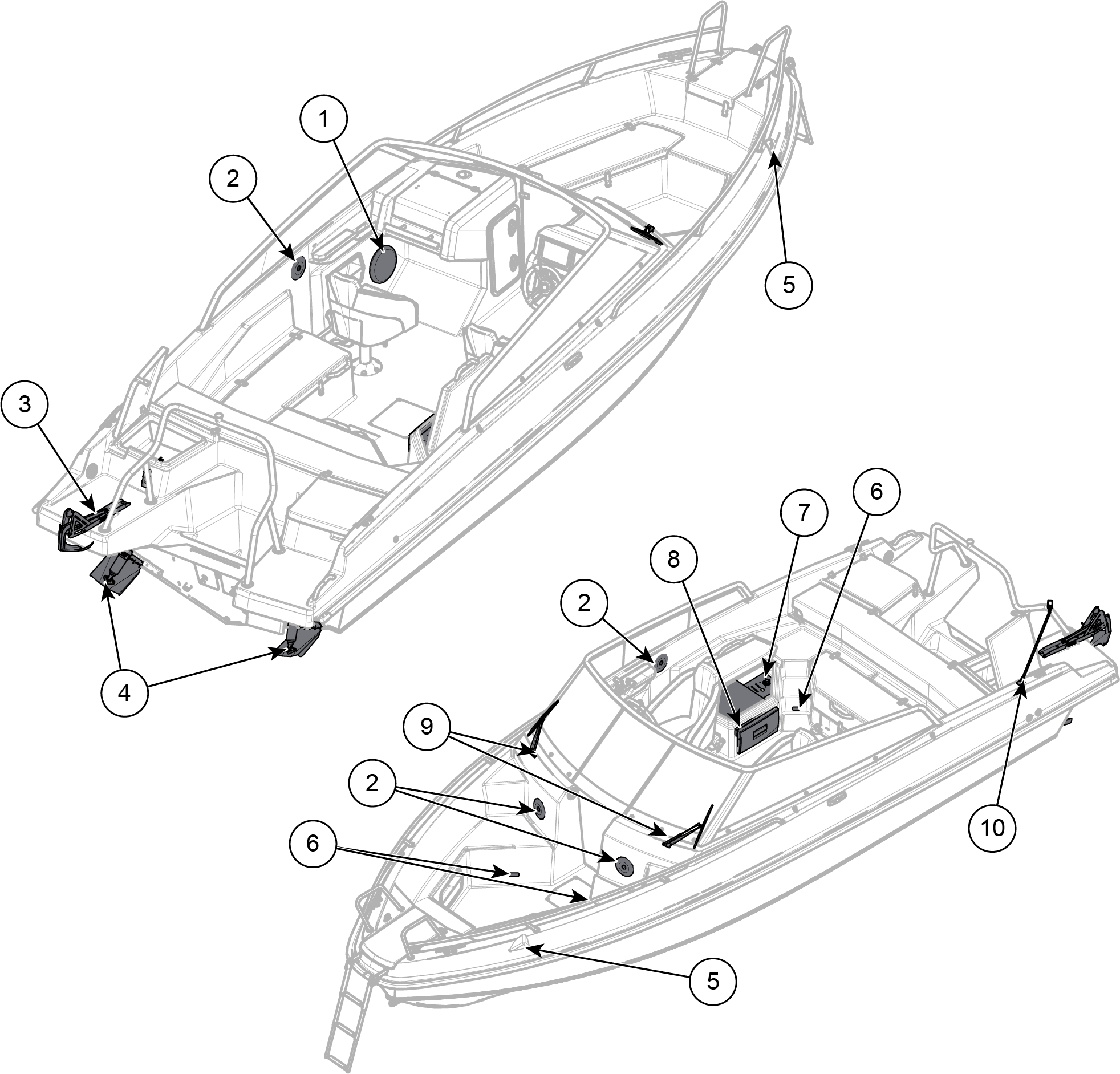

Figure 1. Cross 75 BR
electrical equipment
1 | Subwoofer | 6 | Deck light |
2 | Loudspeaker | 7 | Fuse panel and main switches |
3 | Anchor winch | 8 | Refrigerator |
4 | Trim tabs | 9 | Windshield wipers |
5 | Navigation light | 10 | Light mast |

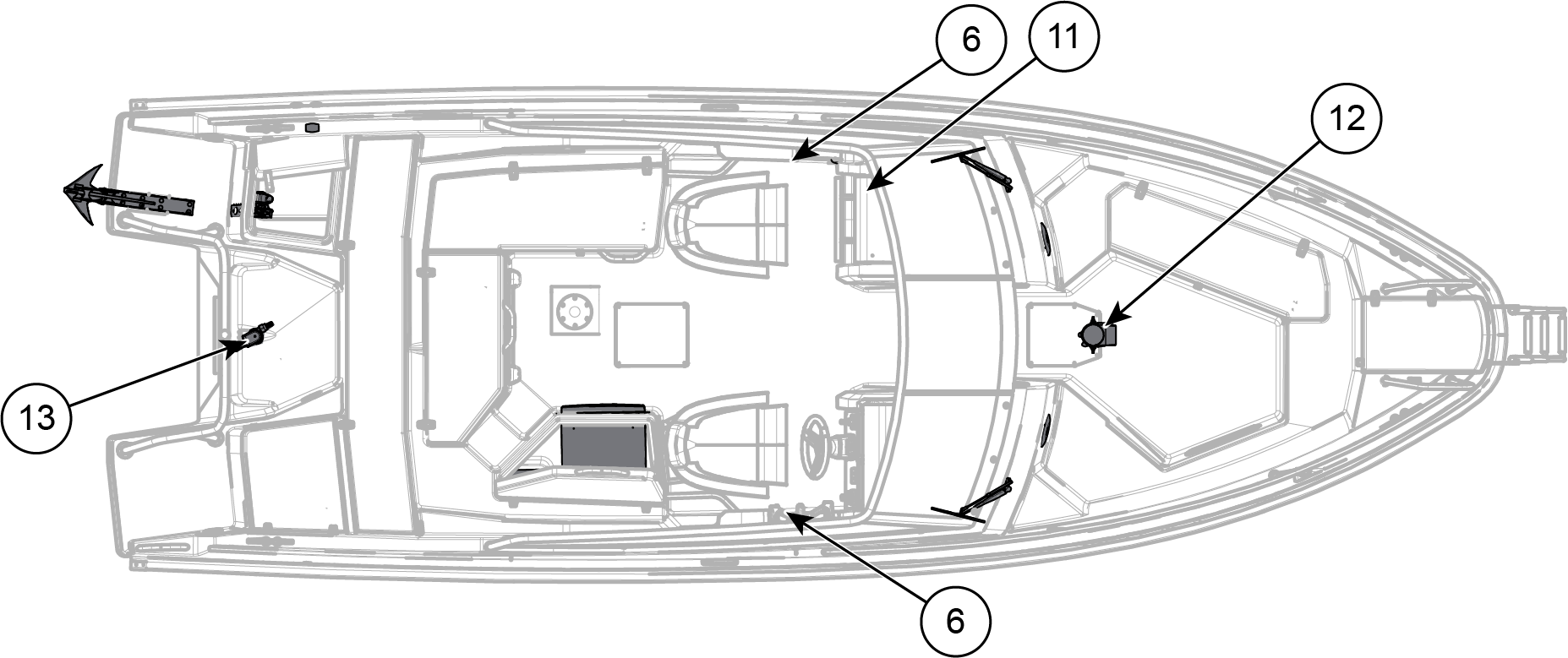

Figure 2. Cross 75 BR
electrical equipment
| 11 | USB socket |
| 12 | Bow thruster |
| 13 | Bilge pump |
| 6 | Deck light |
