6.1.1 Control device locations

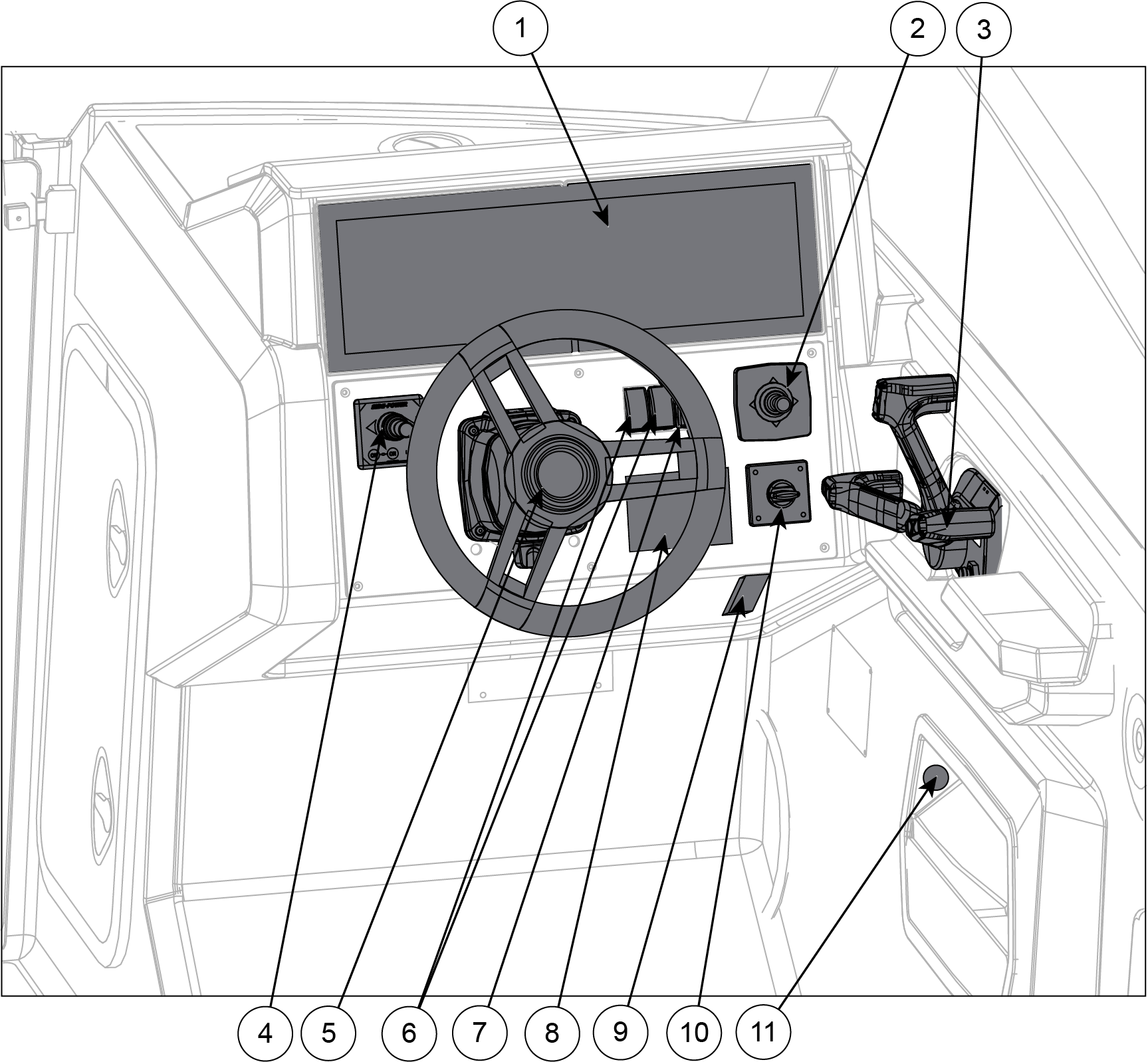

Figure 1. Cross 75 BR helm station controls
1 | Cross Q wide | 7 | Bilge pump switch |
2 | Trim tabs control joystick | 8 | CL-5 touch screen |
3 | Remote control and emergency cut-off switch | 9 | Anchor winch and bow thruster remote controller |
4 | Bow thruster control joystick | 10 | Power and start switch |
5 | Steering wheel | 11 | USB socket |
6 | Windscreen wipers switch |
To control other equipment, such as the boat lighting, optional heater or refrigerator, use the digital switch function in the Cross Q touchscreen.
