9.2.1 Switch and fuse descriptions

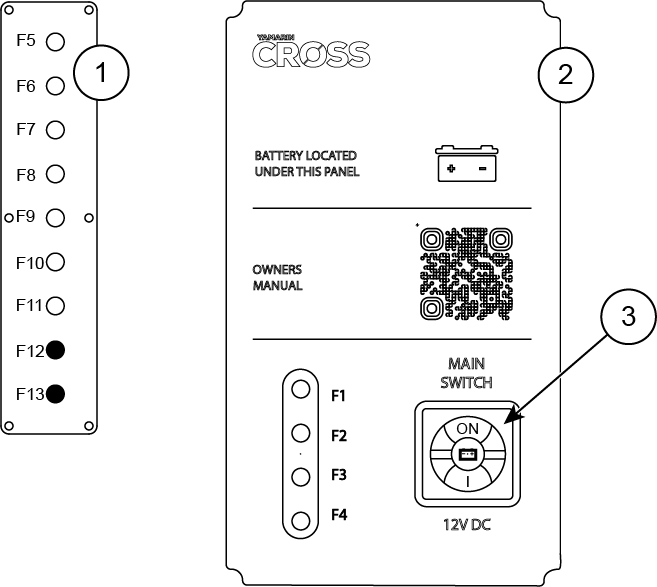

Figure 1. Cross 55 BR
main switch and fuse panel
| 1 |
Additional fuse panel |
F6 |
Windshield wipers |
10 A |
|
| 2 |
Main switch and fuse panel |
F7 |
NMEA |
3 A |
|
| 3 |
Main switch |
F8 |
USB-C/DC outlet |
15 A |
|
| F1 |
Main fuse |
60 A |
F9 |
Deck lights |
10 A |
| F2 |
Empty |
F10 |
Fishfinder |
10 A |
|
| F3 |
Cross Q |
5 A |
F11 |
Trim tabs |
20 A |
| F4 |
Extra |
15 A |
F12 |
Empty |
|
F5 |
Navigation lights |
10 A |
F13 |
Empty |
