6.1.1 Control device locations

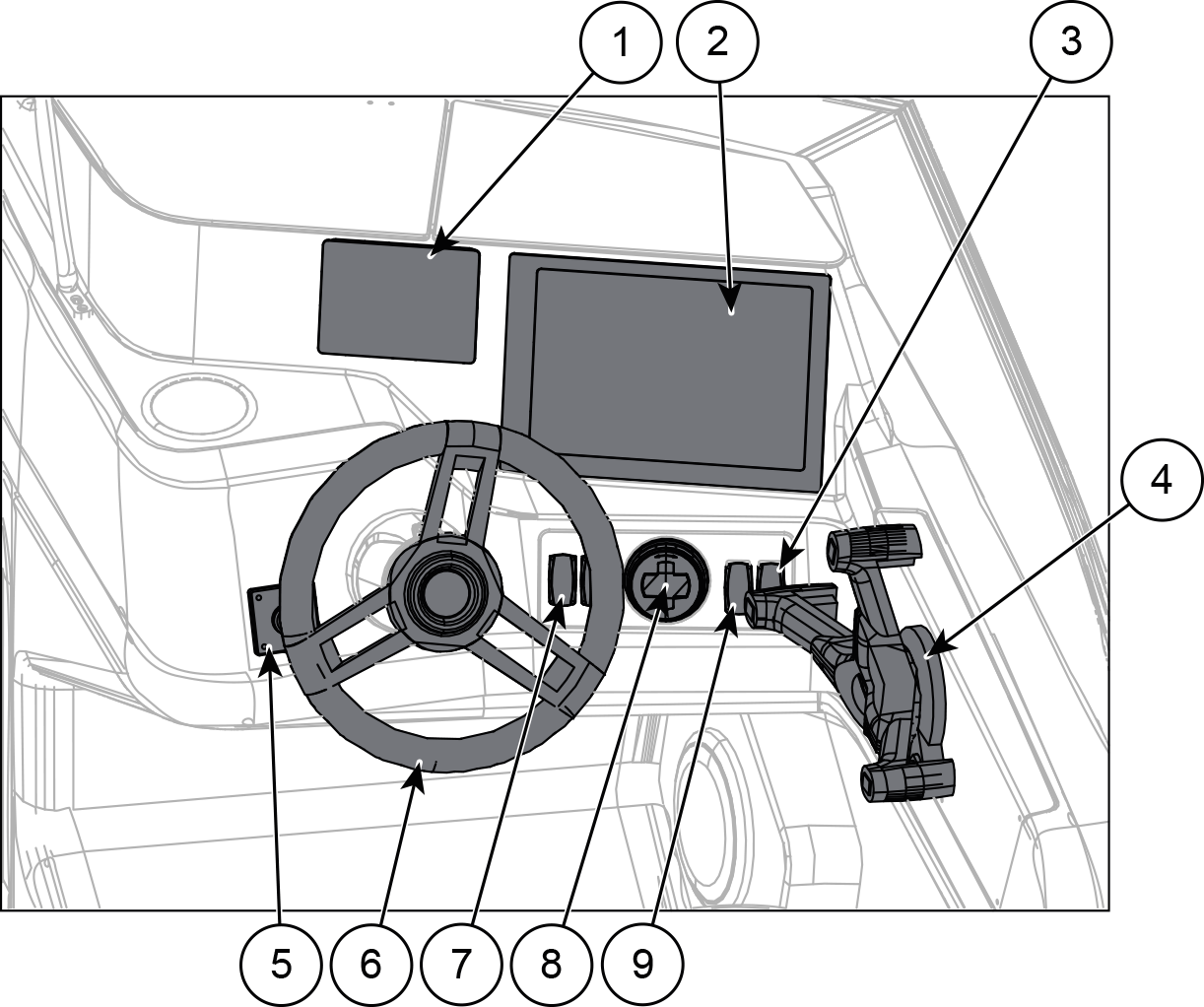

Figure 1. Cross 55 BR
helm station controls
1 | CL-5 touch screen | 6 | Steering wheel |
2 | Cross Q | 7 | Deck light switch |
3 | Windshield wiper switch | 8 | Trim tabs controller |
4 | Remote control and emergency cut-off switch | 9 | Navigation lights switch |
5 | Power and start switch |
