10.2 Locations of draining equipment

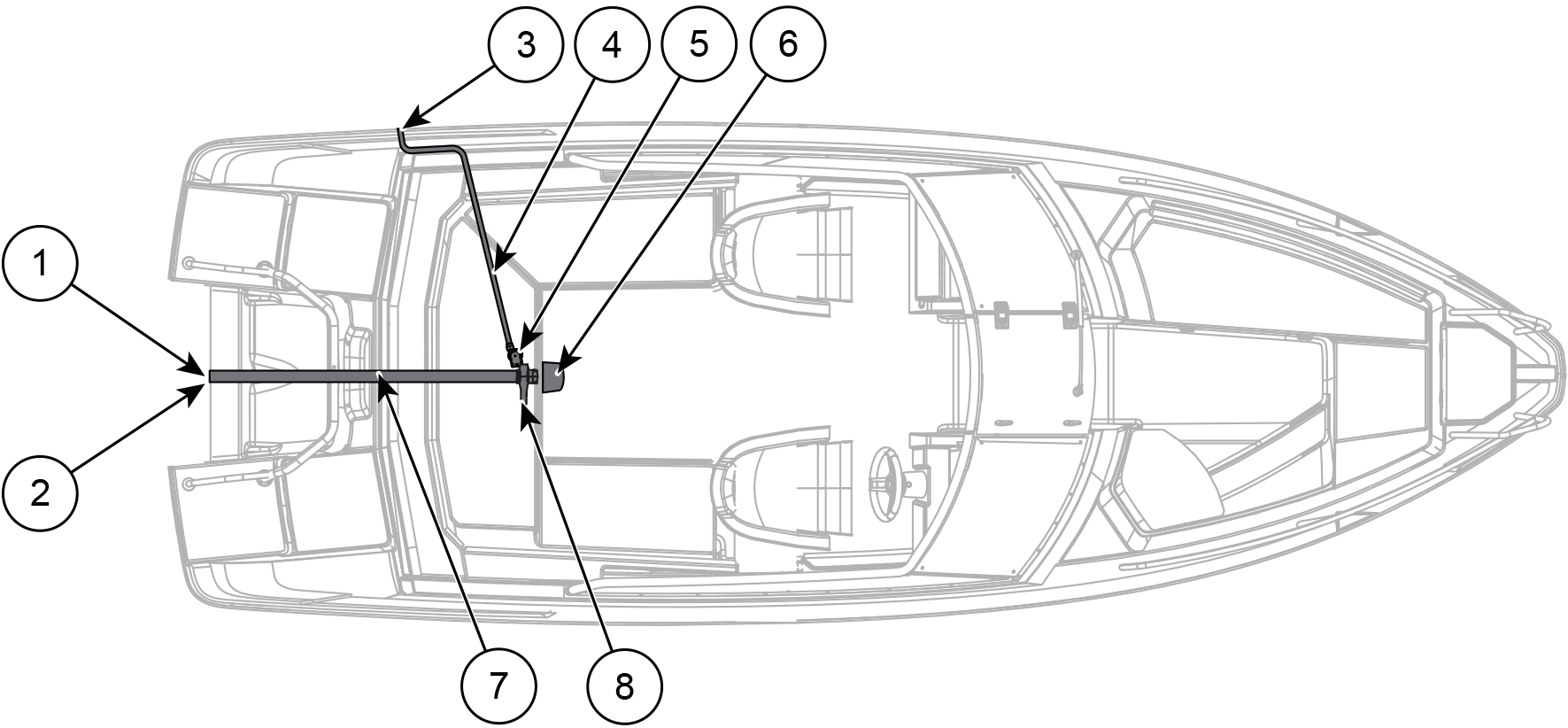

Figure 1. Cross 64 BR
bilge pumps and draining
1 | Rear plug | 5 | Electric bilge pump and float switch |
2 | Shut-off flap | 6 | Rainwater drainage through fitting |
3 | Electric bilge pump through fitting | 7 | Open deck space drainage pipe |
4 | Bilge pump hose | 8 | Rainwater drainage shut-off valve |
