9.2.1 Switch and fuse descriptions

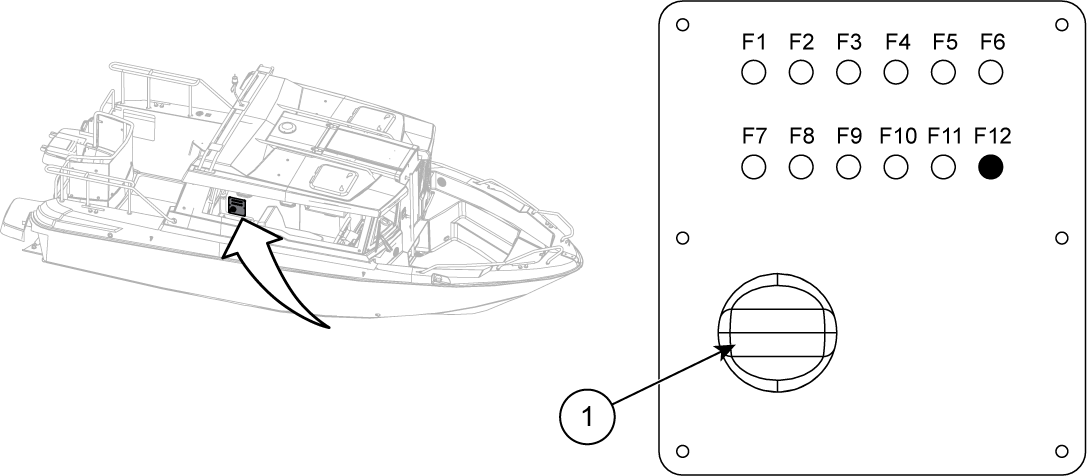

Figure 1. Cross 60 Cabin main switch and fuse panel

1

Main switch



F7

Defroster

10 A

F1

Navigation lights

10 A

F8

NMEA

3 A

F2

Lights

10A

F9

Audio

15 A

F3

Windshield wipers

10 A

F10

Bilge pump

10 A

F4

Trim tabs

20 A

F11

Heater

20 A

F5

12 V outlet

15 A

F12

Empty



F6

Cross Q*

5 A



*If the boat is not equipped with Cross Q, the fuse position F6 is not in use.
