9.4.1 Locations of electrical equipment
Figure 1. Cross 60 Cabin
outside electrical equipment
1 | Deck lights | 4 | Trim tabs |
2 | Light mast | 5 | Windshield wipers |
3 | Solar powered vent | 6 | Navigation lights |

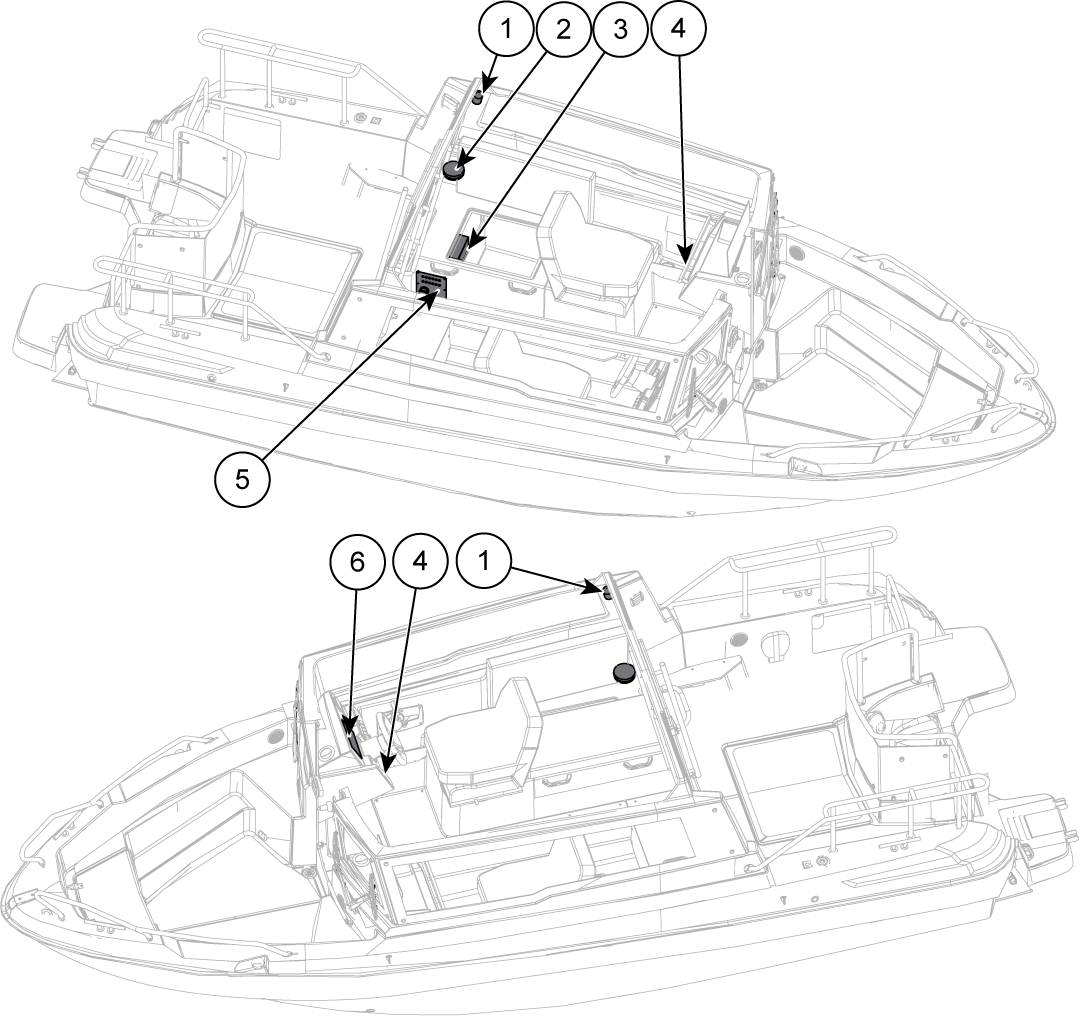

Figure 2. Cross 60 Cabin
electrical equipment
1 | Spotlights | 4 | 12 V outlet and loudspeaker |
2 | Ceiling light | 5 | Main switch and fuse panel |
3 | Battery | 6 | Cross Q (optional feature) |
