6.1.1 Control device locations

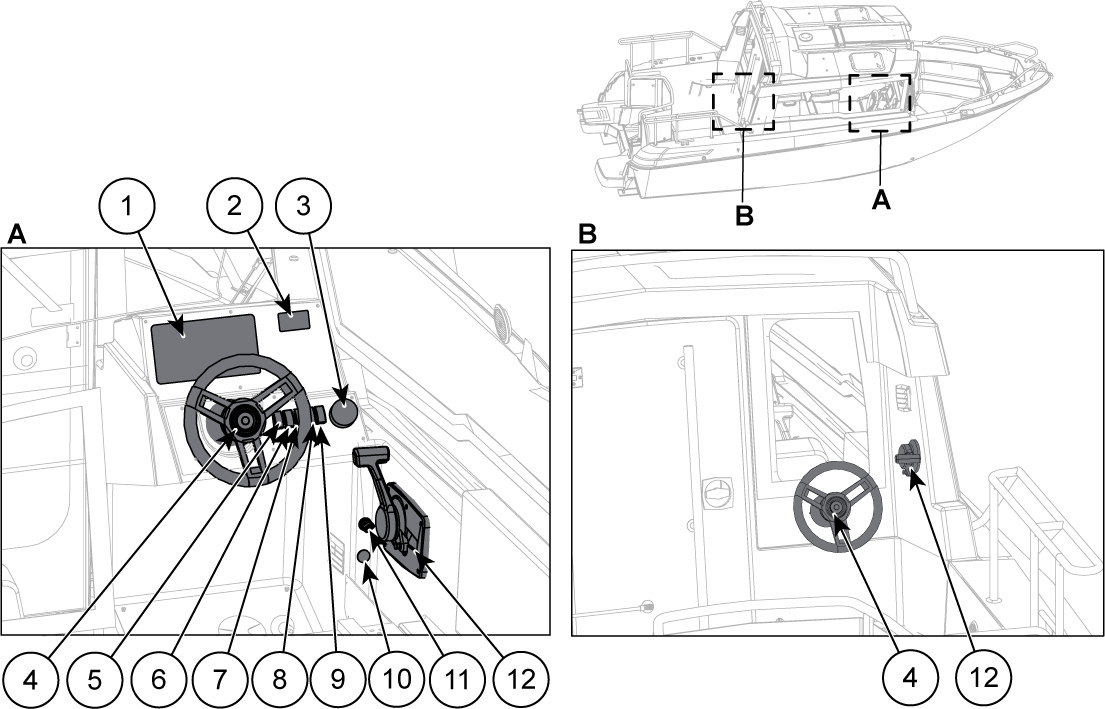

Figure 1. Cabin helm station
controls (A) and optional outside helm station controls (B)
1 | Heater control panel | 8 | Passenger side windshield wiper switch |
2 | Steering wheel | 9 | Driver side windshield wiper switch |
3 | Tachometer | 10 | Deck light switch |
4 | Speedometer | 11 | 12 V outlet |
5 | Trim tabs controller | 12 | Power and start switch |
6 | Window air blower switch | 13 | Remote controller and emergency cut-off switch |
7 | Navigation lights switch |

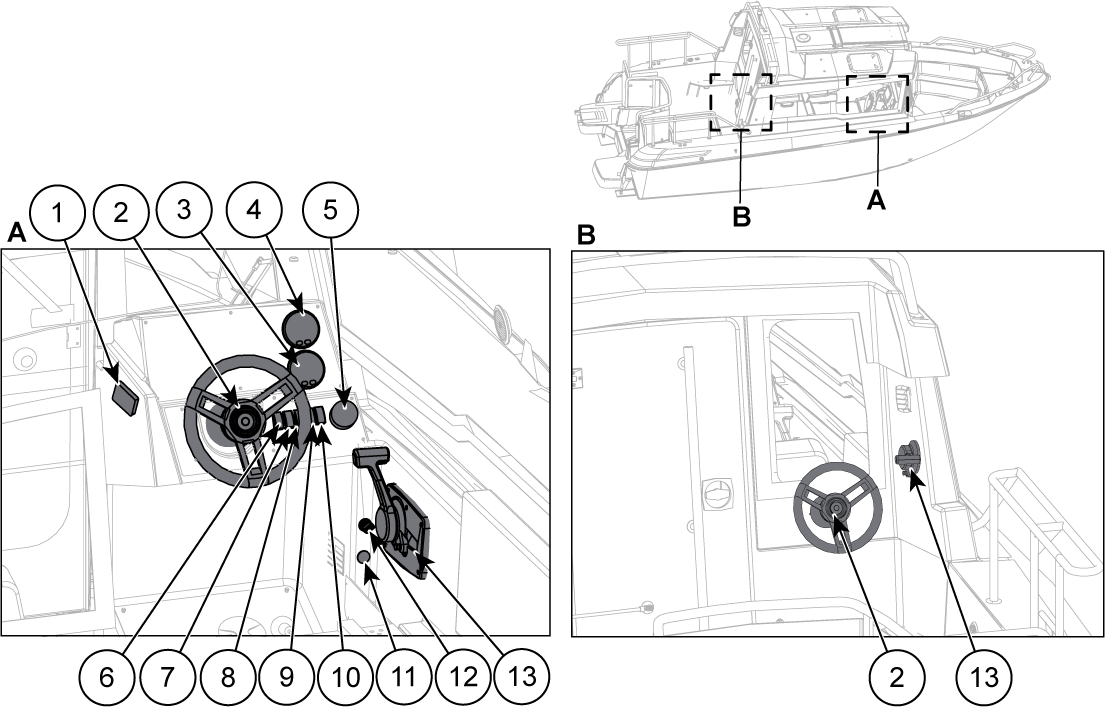

Figure 2. Cabin helm station
controls (A) with Cross Q, and optional outside helm station controls
(B)
1 | Cross Q | 7 | Passenger side windshield wiper switch |
2 | Heater control panel | 8 | Driver side windshield wiper switch |
3 | Trim tabs controller | 9 | Deck light switch |
4 | Steering wheel | 10 | 12 V outlet |
5 | Window air blower switch | 11 | Power and start switch |
6 | Navigation lights switch | 12 | Remote controller and emergency cut-off switch |
