4.3.2 Measurements for antifouling paint area
The measurements indicate the upper limit of the antifouling paint, not the true waterline of the boat.

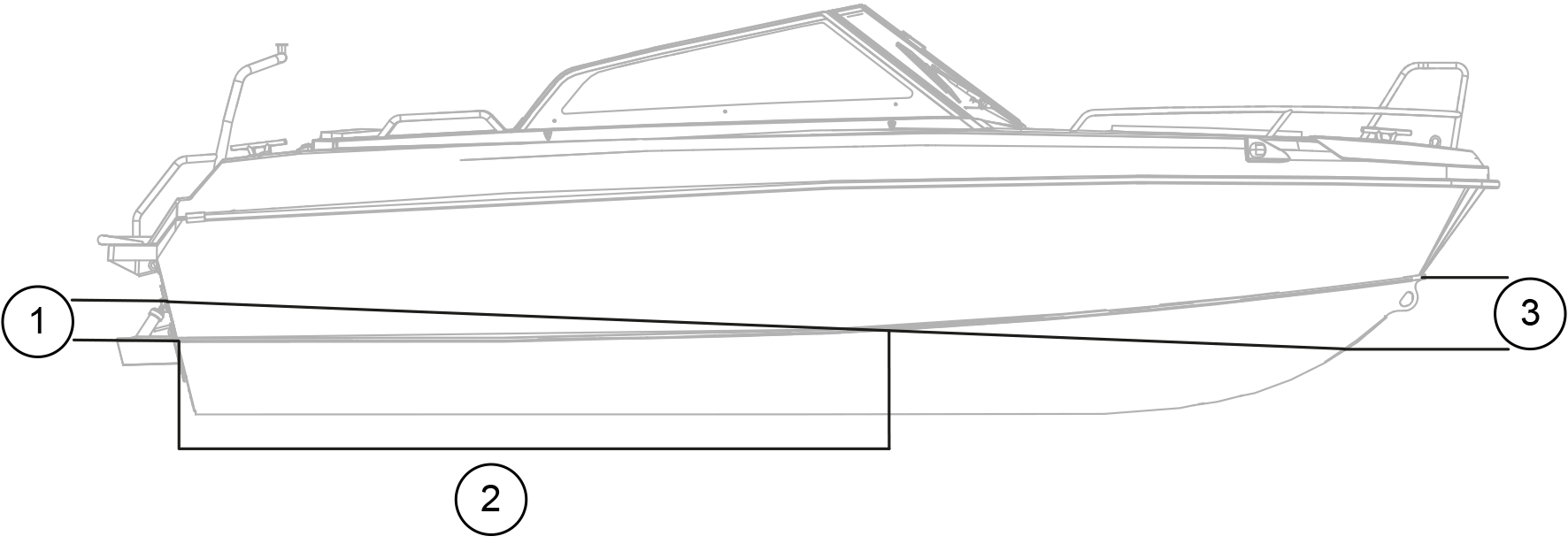

Figure 1. Cross 62 BR
antifouling paint area
| Position | Description | mm |
|---|---|---|
| 1 | At stern: directly up from chine | 150 mm |
| 2 | In chine line: from stern | 3100 mm |
| 3 | At bow: down from chine along the bow | 440 mm |
